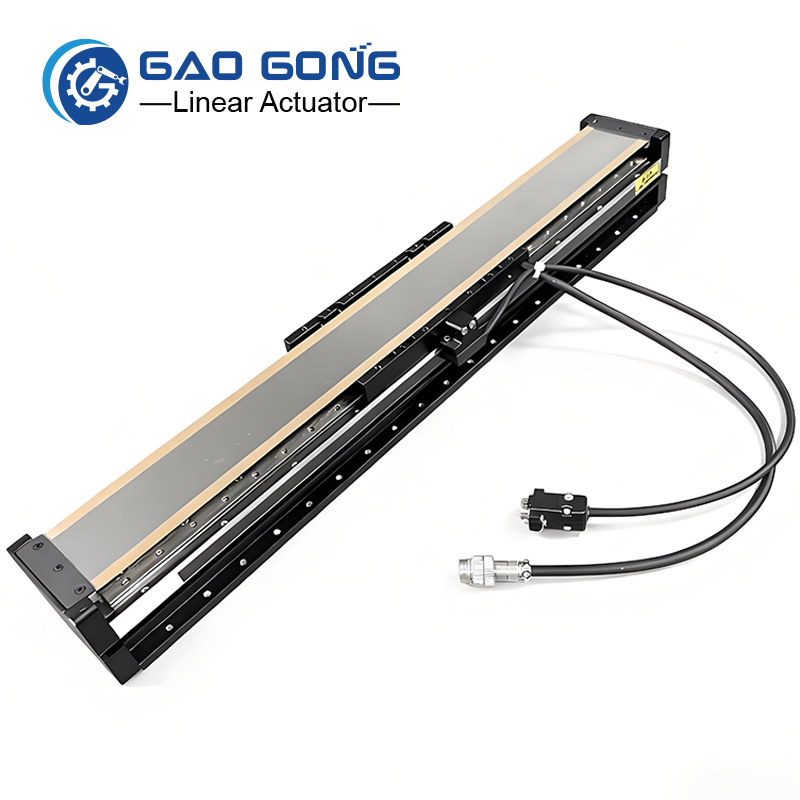

GG09 Series: Compact High-Precision Linear Motor Module

High Speed | Zero Backlash | Ultimate Motion Control

## Product Overview

The GG09 Series is a high-performance linear motor module specifically engineered for applications where space is at a premium but precision is non-negotiable. By utilizing direct-drive technology, it eliminates the mechanical transmission errors associated with traditional ball screws, providing smoother motion and superior dynamic response.

## Key Features

1. Ultra-Slim Compact Design

• Minimal Footprint: With a base width of only 86mm, it is ideal for multi-axis stacking and narrow installation environments.

• Integrated Structure: Optimized profile height to allow for sleeker machine designs.

2. Exceptional Dynamic Performance

• High Thrust Density: Continuous thrust ranging from 70N to 136N, with peak thrust reaching up to 301N (GG09-ZKQ20-C4).

• Extreme Velocity: Capable of reaching top speeds of 2000mm/s.

• Rapid Acceleration: Supports 1G acceleration, significantly reducing cycle times in high-speed pick-and-place or scanning tasks.

3. Micron-Level Accuracy

• Advanced Feedback: Compatible with Magnetic Scales (1μm resolution) and Optical Scales (up to 0.05μm resolution).

• Precision Control: Achieve repeatability as tight as ±2μm (Optical) and straightness within ±10μm per 300mm.

4. Robust and Versatile

• Flexible Strokes: Standard strokes available from 60mm up to 1500mm.

• Multiple Protection Options: Choose from Aluminum Covers, Steel Strips, or Bellows to suit cleanroom or dusty industrial environments.

## Technical Specifications (GG09-ZKQ20 Series)

## Model Selection Guide

Configure your module using the following nomenclature:
GG09 - ZKQ20 - C2 - SXXX - II - B - M10 - LD - 5.0

• GG09: Module Width (86mm)

• ZKQ20: Compact Motor Type (Width 40mm)

• C2/C3/C4: Mover Length Code

• SXXX: Effective Stroke (e.g., S1000 = 1000mm)

• II: Number of Movers (I, II, III, IV)

• B: Protection Type (C: Al Cover, B: Steel Strip, F: Bellows)

• M10: Encoder Type (e.g., 1μm Magnetic Scale)

• LD: Driver Code (LD, CD, SXP, etc.)

• 5.0: Cable Length (Meters)

## Industrial Applications

• Semiconductor & Wafer Inspection

• AOI (Automated Optical Inspection)

• Precision Dispensing & Coating

• Lithium Battery Stacking & Welding

• High-Speed Laboratory Automation
